Infiniti QX: Remote keyless entry system
WARNING
The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA
advises that radio waves may affect aircraft
navigation and communication systems. Do
not operate the Intelligent Key while on an
airplane. Make sure the buttons are not
operated unintentionally when the unit is
stored for a flight.
It is possible to lock/unlock all doors, fuelfiller
door, activate the panic alarm and
open the windows by pushing the buttons
on the Intelligent Key from outside the
vehicle.
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent
Key can operate at a distance of
approximately 33 ft (10 m) from the
vehicle. (The effective distance depends
upon the conditions around the vehicle.).
As many as 4 Intelligent Keys can be used
with one vehicle. For information concerning
the purchase and use of additional
Intelligent Keys, contact an INFINITI retailer.
The lock and unlock buttons on the
Intelligent Key will not operate when:
► the distance between the Intelligent Key
and the vehicle is over 33 ft (10 m).
► the Intelligent Key battery runs down.
After locking with the remote keyless entry
function, pull the door handle to make sure
the doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons,
approach the vehicle to about 3 ft (1 m)
from the door.
How to use remote keyless entry system
When you lock or unlock the doors or the lift gate, the hazard indicator will flash and the horn (or the outside chime) will sound as a confirmation. For details, see “Setting hazard indicator and horn mode” later in this section.
Locking doors and fuel-filler door
1. Move the selector lever to the P (Park)
position, push the ignition switch to the
OFF position and make sure you carry
the Intelligent Key with you.
2. Close all the doors and the lift gate.
3. Push the LOCK button 1 on the
Intelligent Key.
4. All the doors, the lift gate and fuel-filler
door will lock.
5. The hazard indicator flashes twice and
the horn chirps once.
: Doors will lock with the Intelligent Key
while the ignition switch is in the ACC or
ON position.
Unlocking doors and fuel-filler door
1. Push the UNLOCK
button2 on the
Intelligent Key once.
2. The hazard indicator flashes once. The
driver’s door and fuel-filler door will
unlock.
The puddle light and the passenger
cabin illumination will illuminate and
stay on for a short period of time.
3. Push the UNLOCK
button on the
Intelligent Key again within 60 seconds.
4. The hazard indicator flashes once
again. All the doors will unlock.
All doors will be locked automatically
unless one of the following operations is
performed within 1 minute after pushing
the UNLOCK button on the Intelligent Key
while the doors are locked. If during this 1-
minute time period, the UNLOCK button on
the Intelligent Key is pushed, all doors will
be locked automatically after another 1
minute.
► Opening any door
► Pushing the ignition switch
Opening windows
To open the windows, push the door
UNLOCK button on the Intelligent Key
for about 3 seconds after the door is
unlocked.
To stop opening, release the UNLOCK
button.
Window cannot be closed using the Intelligent
Key.
The door windows can be opened or closed
by turning the mechanical key in a door
lock. (See “Doors” earlier in this section.)
Opening/closing lift gate
1. Push the power lift gate button
3 for more than 1 second.
2. The lift gate will automatically open.
The hazard indicator flashes 4 times and
the outside chime sounds for approximately
3 seconds.
To close the lift gate, push the power lift
gate button
3 for more than 1
second.
The lift gate will automatically close.
If the button
3 is pushed while the
lift gate is being opened or closed, the lift
gate will reverse.
The power lift gate button
3 cannot
be operated when the ignition switch is in
the ON position.
Using panic alarm
If you are near your vehicle and feel
threatened, you may activate the alarm to
call attention as follows:
1. Push the PANIC
button 4 on the
Intelligent Key for more than 1 second.
2. The theft warning alarm and headlights
will stay on for 25 seconds.
3. The panic alarm stops when:
► It has run for 25 seconds, or
► Any of the buttons on the Intelligent
Key are pushed. (Note: Panic button
or power lift gate button should be
pushed for more than 1 second.)
Setting hazard indicator and horn mode
This vehicle is set in hazard indicator and
horn mode when you first receive the
vehicle.
In hazard indicator and horn mode, when
the LOCK button 1 is pushed, the
hazard indicator flashes twice and the horn
chirps once. When the UNLOCK
button
2 is pushed, the hazard indicator flashes
once.
If horns are not necessary, the system can
be switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button
is pushed, the hazard indicator
flashes twice. When the UNLOCK
button
is pushed, neither the hazard
indicator nor the horn operates.

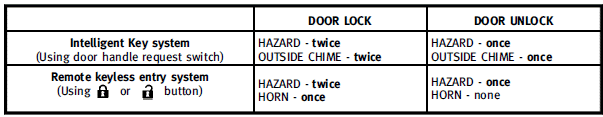

Hazard indicator and horn mode:

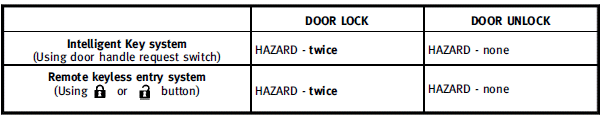

Hazard indicator mode:
Switching procedure:
Push the LOCK 1 and UNLOCK
2
buttons on the Intelligent Key simultaneously
for more than 2 seconds to switch
the mode from one to the other.
When pushing the buttons to set the
hazard indicator mode, the hazard indicator
flashes 3 times.
When pushing the buttons to set the
hazard indicator and horn mode, the
hazard indicator flashes once and the horn
chirps once.
Hood
1. Pull the hood lock release handle 1
located below the instrument panel;
the hood will then spring up slightly.
2. Pull the lever 2 up at the front of the
hood with your fingertips and rai ...
