Buick Enclave: Instrument Panel Fuse Block - Electrical System - Vehicle Care - Buick Enclave Owner's ManualBuick Enclave: Instrument Panel Fuse Block

The instrument panel fuse block is located under the instrument panel on the passenger side of the vehicle. Pull down on the cover to access the fuse block.

Fuse Side

Fuse Side

The vehicle may not be equipped with all of the fuses, relays, and features shown.

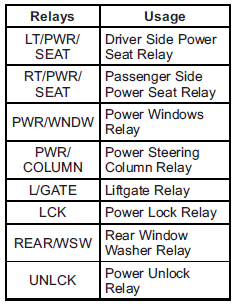

Relay Side

Relay Side
