POWER WINDOWS

WARNING

► Make sure that all passengers have their hands, etc. inside the vehicle while it is in motion and before closing the windows. Use the window lock switch to prevent unexpected use of the power windows.
► Do not leave children unattended inside the vehicle. They could unknowingly activate switches or controls and become trapped in the window. Unattended children could become involved in serious accidents.

The power windows operate when the ignition switch is in the ON position or for about 45 seconds after the ignition switch is pushed to the OFF position. If the driver’s or front passenger’s door is opened during this period of about 45 seconds, power to the windows is canceled.

1. Driver side window
2. Front passenger side window
3. Rear left passenger side window
4. Rear right passenger side window
5. Window lock button

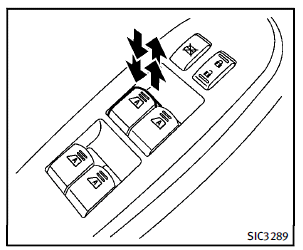

Main power window switch (driver’s side)

To open or close the window, push down A or pull up B the switch and hold it. The main switch (driver side switches) will open or close all the windows.

Locking passengers’ windows When the lock buttonC is pushed in, only the driver side window can be opened or closed. Push it in again to cancel.

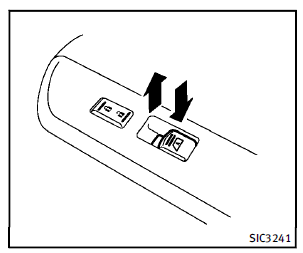

Passenger side power window switch

The passenger side switch will open or close only the corresponding window. To open or close the window, push down or pull up the switch and hold it.

Automatic operation

To fully open or close the window, completely push down or pull up the switch and release it; it need not be held. The window will automatically open or close all the way. To stop the window, just push or lift the switch in the opposite direction. A light push or pull on the switch will cause the window to open or close until the switch is released.

Auto reverse function

WARNING
There are some small distances immediately before the closed position which cannot be detected. Make sure that all passengers have their hands, etc., inside the vehicle before closing the window.

If the control unit detects something caught in the window as it is closing, the window will be immediately lowered. The auto reverse function can be activated when the window is closed by automatic operation when the ignition switch is in the ON position or for 45 seconds after the ignition switch is pushed to the OFF position. Depending on the environment or driving conditions, the auto reverse function may be activated if an impact or load similar to something being caught in the window occurs. If the windows do not close automatically If the power window automatic function (closing only) does not operate properly, perform the following procedure to initialize the power window system. 1. Push the ignition switch to the ON position. 2. Close the door. 3. Open the window completely by operating the power window switch. 4. Pull the power window switch and hold it to close the window, and then hold the switch more than 3 seconds after the window is closed completely. 5. Release the power window switch. Operate the window by the automatic function to confirm the initialization is complete. 6. Perform steps 2 through 5 above for other windows. If the power window automatic function does not operate properly after performing the procedure above, have your vehicle checked by an INFINITI retailer.
