Infiniti QX: Vehicle load capacity

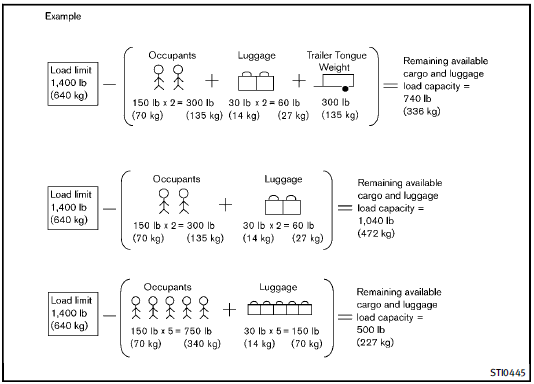

Do not exceed the load limit of your vehicle shown as “The combined weight of occupants and cargo” on the Tire and Loading Information label. Do not exceed the number of occupants shown as “Seating Capacity” on the Tire and Loading Information label. To get “the combined weight of occupants and cargo”, add the weight of all occupants, then add the total luggage weight. Examples are shown in the illustration.
Steps for determining correct load limit
1. Locate the statement “The combined
weight of occupants and
cargo should never exceed XXX kg
or XXX lbs” on your vehicle’s
placard.
2. Determine the combined weight of
the driver and passengers that
will be riding in your vehicle.
3. Subtract the combined weight of
the driver and passengers from
XXX kg or XXX lbs.
4. The resulting figure equals the
available amount of cargo and
luggage load capacity. For example,
if the XXX amount equals
1400 lbs. and there will be five
150 lb. passengers in your vehicle,
the amount of available cargo
and luggage load capacity is 650
lbs. (1400 − 750 (5 x 150) = 650
lbs) or (640 − 340 (5 x 70) = 300
kg.).
5. Determine the combined weight of
luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity
calculated in Step 4.
6. If your vehicle will be towing a
trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity
of your vehicle.
Before driving a loaded vehicle,
confirm that you do not exceed the
Gross Vehicle Weight Rating (GVWR)
or the Gross Axle Weight Rating
(GAWR) for your vehicle. (See “Measurement
of weights” later in this
section.).
Also check tires for proper inflation
pressures. See the Tire and Loading
Information label.
Terms
It is important to familiarize yourself
with the following terms before
loading your vehicle:
► Curb Weight (actual weight of your
vehicle) - vehicle weight including:
standard and opt ...
Securing the load
There are tie down hooks located in the
cargo area as shown. The tie down hooks
can be used to secure cargo with ropes or
other types of straps.
Do not apply a total load of more than 22
lb ...
