Range Rover: Using the navigation system
WARNING
In the interests of safety, only operate, adjust or view the system when it is safe to do so.
WARNING
The navigation system is not a substitute for driving safely, with due care and attention. Drivers should not assume that a feature will correct errors in judgement in driving. The navigation system may not function properly in all circumstances.
WARNING
Do not allow the system to distract the driver while the vehicle is moving. Driver distraction can lead to accidents causing serious injury or death.
WARNING
Do not adjust the touch screen controls, or allow the system to distract the driver, while the vehicle is moving. Driver distraction can lead to accidents, causing serious injury or death.

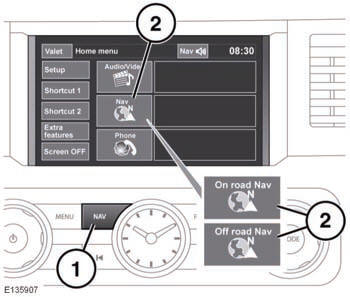

1. NAV shortcut button.
2. NAV soft key.
Note: On vehicles with off-road navigation, the soft key includes On road or Off road, to show the current Navigation mode.
From the Home menu, touch the NAV soft key. Alternatively, press the NAV shortcut button on the facia. A caution screen will be displayed.
If the navigation screen language has not been set, now is the time to set it. Select Language, make a selection and confirm it by touching the OK soft key. You will be returned to the CAUTION screen.
After touching the Agree soft key, the touch screen will display the Nav menu (which is the navigation system Main menu and covered over two screens) or the screen that was in use when you last switched off the system.
Note: After approximately 12 seconds, the menu soft keys will disappear and display the map information only. This will show current vehicle position. Touch the Nav menu soft key to display the Main menu screen.
At this point, the first time user should set up personal preferences in the Nav set-up area. These settings are applied whenever navigation is used.
The navigation system
Navigation instruction is by map and turn information displayed on the touch
screen and can be complemented by voice guidance if required. A detailed intersection
map is also displayed in the inst ...
Main menu
1. Previous destinations: Displays previous destinations entered.
2. Route options: Allows selection of various options for the route.
3. When a destination is set, the Range Rover logo is replace ...
