WARNING

Do not adjust the touch screen controls, or allow the system to distract the driver, while the vehicle is moving. Driver distraction can lead to accidents, causing serious injury or death.

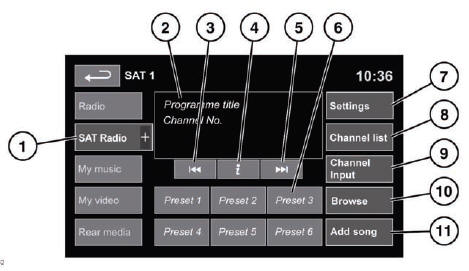

1. Satellite band selection:

• • Touch to select satellite radio.
• • Touch + to view and select a band (SAT 1, 2 or 3). The radio will tune to the last used channel on that band.

The Satellite band selection box will close after 5 seconds without use or can be closed by selecting SAT radio.

2. Display showing the current channel, the associated Category and relevant radio text. This information is also displayed in the instrument panel.

3. Seek down: Touch to seek previous available channel.

4. Channel information: Touch to view a pop-up of information broadcast by the channel.

5. Seek up: Touch to find the next available channel.

6. Channel presets: Each SAT band has six preset positions.

• • Touch and release to tune the radio to the channel stored on that preset.
• • Touch and hold to store the current channel on that preset.
• • Use the seek buttons on the steering wheel to select the next or previous preset channel.

Note: If a selected preset channel is unsubscribed, or has become unsubscribed, the Sirius phone number and a message will be displayed. See 116, SUBSCRIPTION SETUP. Only subscribed channels can be saved as presets.

7. Settings. select to view the Settings menu:

• • Options: To activate/deactivate Song seek and to view and edit the Song memory.
• • Channel skip: Select individual channels or entire categories (select Skip all) from the list. The selected channels/categories will be skipped when using the Seek controls.
• • Parental lock: Select individual channels or entire categories (Lock all) from the list. Locked channels/ categories cannot be selected without first entering the correct PIN. A 4-digit PIN needs to be entered to access the parental lock area. The default PIN is “0000” Select Edit PIN to change the PIN.
  Note: If the PIN is forgotten, it can be reset by touching and holding Parental lock for 10 seconds, then touching and holding SAT information for 10 seconds.
• • SAT information: Select to view your SIRIUS ID number and subscription contact number.

8. Channel list: Touch to view a list of available categories. Select the desired category to view the list of corresponding channels. Make your channel selection from the list.

9. Channel input: Select to use the numerical touch-pad to enter a channel number. The OK soft key can be used at any time to enter your selection. If a single number, e.g. 7, is entered, SDARS will tune to that channel.

If 07 or 007 is entered, SDARS will still tune to the same channel. If OK is not touched after numbers are selected, the station will automatically tune to that station following a time out period

10. Browse: Select from the list of categories to view the details (channel number, artist and title of current track) of the channels in the selected category.

Note: If there is more information than can fit on the display, select i to view all the information available.

Select a channel from the list to tune to that channel (list is still displayed for further browsing).

11. Add song: Select to add the currently playing track to the song memory.

Subsequently, if a subscribed channel is broadcasting a song and its title is stored in the song memory, a pop-up will be displayed giving you the option to tune to that channel .

If the song memory is full and the vehicle is stationary, the option to edit the memory is available on a pop-up screen. Existing song titles can be deleted from the memory, allowing alternative song titles to be stored.
