Cadillac Escalade: Removing the Third Row Seat - Third Row Seats - Rear Seats - Seats and Restraints - Cadillac Escalade Owner's ManualCadillac Escalade: Removing the Third Row Seat

To remove the seat:

1. Open the liftgate to access the controls for the seat.

2. Fold the seatbacks forward using lever “1” and the instructions listed previously under “Folding the Seatback.” The seat cannot be unlatched from the floor unless the seatback is folded.

3. Unlatch the seat from the floor by pulling the handle at the rear of the seat

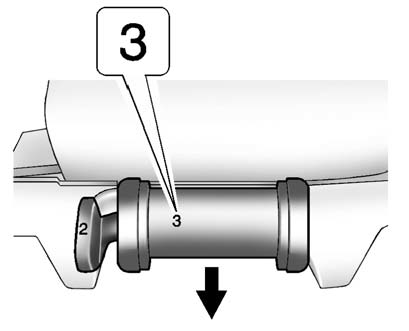

3. Unlatch the seat from the floor by pulling the handle at the rear of the seat “3 Removal Only” toward the rear of the vehicle.

4. Roll the seat out of the vehicle. There is a track in the floor to guide the seat wheels out of the vehicle.

    Returning the Third Row Seat from a Tumbled Position
    To return the seat to the normal seating position: 1. Open the liftgate to access the controls for the seat. 2. Make sure there is nothing that could become trapped under the seat. 3. Release the s ...

    Installing the Third Row Seat
    To install the seat: 1. Open the liftgate to access the rear of the vehicle. 2. Slide the front outboard seat wheels into the track on the floor and roll the seat forward. The front latches should ...
