Range Rover: Rear lamp - bulb replacement - Maintenance - Range Rover Owner's ManualRange Rover: Rear lamp - bulb replacement

Range Rover / Range Rover Owner's Manual / Maintenance / Rear lamp - bulb replacement

Note: The direction indicator lamp, stop lamp, and tail lamp are LED units, and cannot be serviced.

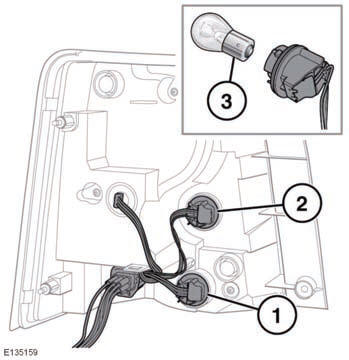

1. Rear fog lamp.

1. Rear fog lamp.

2. Reversing lamp

3. Twist the relevant bulb unit and pull to access the bulb. Push, twist and pull to remove the bulb.
