Displaying navigation instructions

In the Navigation menu: the instructions from the navigation system appear in the multifunction display. For more information, see the separate operating instructions.

Switch on COMAND (see the separate operating instructions).
Press the steering wheel to select the Navigation button on the steering wheel to select the Navigation menu.

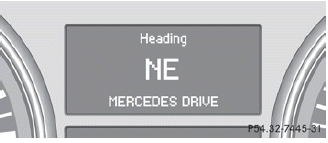

Route guidance inactive

The direction of travel appears in the multifunction display. If the name of the street is part of the navigation system data, this will also be displayed.

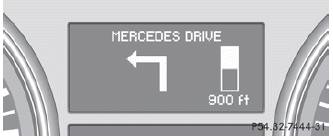

Route guidance active

Route guidance active

The multifunction display shows navigation instructions, for example:
