Mercedes-Benz GL-Class: MB Info call button - mbrace - Features - Stowing and features - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: MB Info call button

► Open the stowage compartment under the armrest.

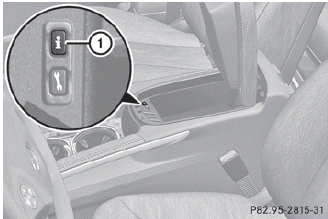

► Press and hold MB Info call button 1

► Press and hold MB Info call button 1 for more than two seconds.

This initiates a call to the Mercedes-Benz Customer Assistance Center. The indicator lamp in MB Info call button 1 flashes while the connection is being established. The Connecting Call message appears in the multifunction display. The audio output is muted.

If a connection can be established, the Call Connected message appears in the multifunction display.

If a cellular phone network is available and there is sufficient GPS reception, the mbrace system transmits data to the Mercedes-Benz Customer Assistance Center, for example:

• current location of the vehicle
• vehicle identification number

mbrace call is active. During the call, you The COMAND display shows that an mbrace call is active. During the call, you can change to the navigation menu by pressing the NAVexample. button on COMAND, for example.

Voice output is not available.

A voice connection is established between the Mercedes-Benz Customer Assistance Center and the vehicle occupants. You can obtain information on how to operate your vehicle's systems, on the location of the nearest authorized Mercedes-Benz Center, and on further products and services offered by Mercedes-Benz USA.

Further details on the mbrace system can be found under http://www.mbusa.com34.

Log in under "Owners Online".

MB Info call if: The mbrace system failed to initiate an MB Info call if:

• the indicator lamp in MB Info call button : is flashing continuously.
• no voice connection to the Mercedes-Benz Customer Assistance Center was established.

This may be because the corresponding mobile phone network is not available.

The Call Failed message appears in the multifunction display.

► To end a call: press the multifunction steering wheel. button on the multifunction steering wheel.
or
► Press the corresponding button for ending a phone call on COMAND.

    Roadside Assistance button
    ► Open the stowage compartment under the armrest. ► Press and hold Roadside Assistance button 1 for more than two seconds. This initiates a call to the Mercedes-Benz Customer Assi ...

    Call priority
    When service calls are active, e.g. Roadside Assistance or MB Info calls, an emergency call can still be initiated. In this case, an emergency call will take priority and override all other active ...
