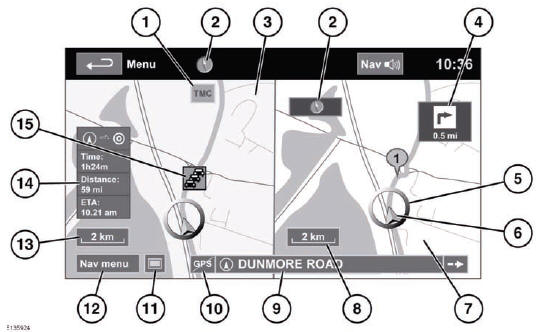

Range Rover: Map split screen - Navigation system - Range Rover Owner's ManualRange Rover: Map split screen

1. TMC (Traffic Message Channel) information.

1. TMC (Traffic Message Channel) information.
2. Compass (always indicates north). Press to change style of icon.
3. Normal screen.
4. Next direction display.
5. Current vehicle position.
6. Vehicle direction arrow.
7. Split screen.
8. Split screen scale/zoom setting.
9. Current street location.
10. No GPS signal.
11. Screen mode selection.
12. Navigation menu.
13. Normal screen scale/zoom setting.
14. Distance/time to destination.
15. TMC event (traffic congestion).
