Range Rover: Interior lamp bulb replacement - Maintenance - Range Rover Owner's ManualRange Rover: Interior lamp bulb replacement

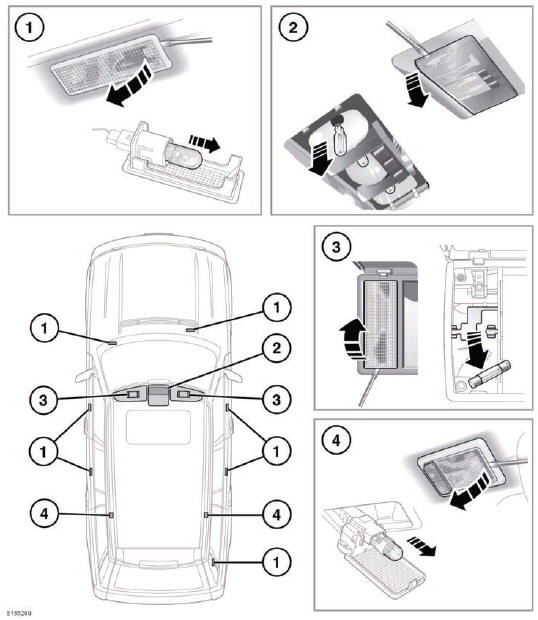

Follow the steps illustrated. Insert a new bulb and refit the components.

Follow the steps illustrated. Insert a new bulb and refit the components.

1. Footwell, puddle and loadspace lamps.
2. Courtesy lamp and map lamps.
3. Vanity mirror lamps.
4. Rear courtesy lamps.

    License plate lamp bulb replacement
    1. Using a small flat-bladed screwdriver, carefully prize the lamp from the tailgate. 2. Twist the bulb holder counter-clockwise to unlock then pull to remove. Pull out the bulb to remove. ...

    Window reset
    The windows will need to be reset if the battery is disconnected, becomes discharged or power supply is interrupted. Reset as follows: 1. Close the window fully. 2. Release the switch, then lift ...
