Infiniti QX: How to use SETTING button
The display as illustrated will appear when the SETTING button is pushed. For navigation settings, refer to the separate Navigation System Owner’s Manual.
Audio settings
The display as illustrated will appear when pushing the SETTING button and selecting the “Audio” key. Bass/Treble/Balance/Fade: To adjust the speaker tone quality and sound balance, select the “Bass”, “Treble”, “Balance” or “Fade” key and adjust it with the INFINITI controller. These items can also be adjusted by pushing and turning the AUDIO knob.
Speed Sensitive Vol.:
The audio system’s volume is increased with the vehicle speed. Select the “Speed Sensitive Vol.” and adjust the effect level with the INFINITI controller. The Speed Sensitive Volume function is turned off when the level is set to OFF. Increasing the value will cause the volume to increase faster with vehicle speed.
BOSE® Centerpoint® (if so equipped):
When this item is turned to ON, an exciting surround sound effect is generated from a traditional stereo recording.
Surround Effect (if so equipped):
To adjust the surround sound volume, select “Surround Effect” key and adjust it with the INFINITI controller.
Driver’s Audio Stage (if so equipped):
When this feature is turned to ON, better sound will be provided to the driver’s position. The driver can enjoy a more crisp and clear sound that is specialized for the driver’s position. The effect of this feature depends on the type of music that is played. For some music, it may be difficult to realize the effect of this feature.
DivX® Registration Code:
The registration code for a device that is used to download DivX® files will be displayed on the screen. If a disc is loaded or a USB memory is connected to the audio system, this function will not be activated.
Display Album Cover Art:
When this item is turned to ON, the album cover image is displayed when playing compressed music files through a CD, DVD, iPod® or MP3 USB memory. When the image is not properly embedded in the file or device, the image will not be displayed.
Phone settings
For details of the “Phone” settings, see “Bluetooth® Hands-Free Phone System” later in this section.
Bluetooth settings
For details of the “Bluetooth” settings, see “Bluetooth® Hands-Free Phone System” later in this section.
Volume and Beeps settings

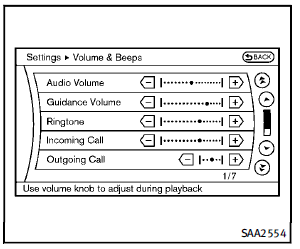

The display as illustrated will appear when pushing the SETTING button, selecting the “Volume & Beeps” key.
Audio Volume:
To increase or decrease the audio volume, select the “Audio Volume” and adjust it with the INFINITI controller. You can also adjust the audio volume by turning the VOLUME control knob.
Guidance Volume:
To adjust the guidance voice volume, select the “Guidance Volume” and adjust it with the INFINITI controller. You can also adjust the guidance voice volume by turning the VOLUME control knob while voice guidance is being announced.
Ringtone/Incoming Call/Outgoing Call:
For the details of these items, see “Bluetooth ® Hands-Free Phone System” later in this section.
Switch Beeps:
When this item is turned to ON, you will hear a beep sound when you use a button.
Guidance Voice:
When this item is turned to ON, you will hear voice guidance in the navigation operation or in other operations.
NOTE:
When the voice guidance is being announced during audio playback, turning the volume knob does not adjust the music level; it adjusts the guidance volume level. If voice guidance is not being heard, please check the Guidance Volume level.
REAR DISPLAY settings (if so equipped)

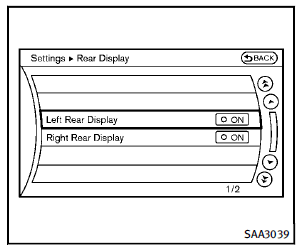

The “Rear Display” screen will appear when pushing the SETTING button, selecting the “Rear Display” key with the INFINITI controller and pushing the ENTER button. Left/Right Rear Display: When an item is turned to ON, the selected side of the rear display turns on. (See “Dual head restraint DVD system” later in this section.)
DRIVER ASSISTANCE settings (if so equipped)
For details of the “Driver Assistance”
settings, refer to the following items:
► “Lane Departure Warning (LDW)/Prevention
(LDP) system ” in the “5. Starting
and driving” section.
► “Blind Spot Warning (BSW) system/
Blind Spot InterventionTM system” in
the “5. Starting and driving” section.
► “Distance Control Assist (DCA) system”
in the “5. Starting and driving” section.
► “Forward Collision Warning (FCW) system”
in the “5. Starting and driving”
section.
Others settings
The Others settings display will appear when pushing the SETTING button and selecting the “Others” key. The following items are available:
► Display
► Comfort
► Clock
► Language & Units
► Voice Recognition
► Camera
► Image Viewer
Display settings
The display as illustrated will appear when pushing the SETTING button and selecting the “Display” key. Display Adjustment: To adjust the display settings, select the “Display Adjustment” key. The following settings are available.
► Display
To turn off the screen, push the ENTER
button and turn the “Display” indicator off.
The other method is to push and hold the
FF button for more than 2 seconds.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is
finished.
To turn on the screen, set this item to the
ON position, or push and hold the
OFF
button.
► Brightness/Contrast/Background Color
To adjust the brightness and contrast of
the screen, select the “Brightness” or
“Contrast” key.
Then, you can adjust the brightness and
the contrast using the INFINITI controller.
For information on the “Background Color”
key, refer to the separate Navigation
System Owner’s Manual.
Color Theme:
Choose the theme color of the menu screen
from “Black”, “Brown” or “Silver”.
Comfort settings
The display as illustrated will appear when pushing the SETTING button and selecting the “Others” key, and then selecting the “Comfort” key. This key does not appear on the display until the ignition switch is pushed to the ON position. Auto Interior Illumination: When this item is turned to ON, the interior lights will illuminate if any door is unlocked.
Light Sensitivity:
Adjust the sensitivity of the automatic headlights higher (right) or lower (left).
Light Off Delay:
Choose the duration of the automatic headlight off timer from 0, 30, 45, 60, 90, 120, 150 and 180 second periods.
Selective Door Unlock:
When this item is turned to ON, only the driver’s door is unlocked first after the door unlock operation. When the door handle request switch on the driver’s or front passenger’s side door is pushed to be unlocked, only the corresponding door is unlocked first. All the doors can be unlocked if the door unlock operation is performed again within 60 seconds. When this item is turned to OFF, all the doors will be unlocked after the door unlock operation is performed once.
Intelligent Key Lock/Unlock:
When this item is turned to ON, door lock/ unlock function by pushing the door handle request switch will be activated.
Lift Steering Wheel on Exit:
When this item is turned to ON, the steering wheel moves upward for easy exit if the ignition switch is in the LOCK position and the driver’s door is opened. After getting into the vehicle and pushing the ignition switch to the ACC position, the steering wheel moves to the previous position.
Slide Driver Seat Back on Exit:
When this item is turned to ON, the driver’s seat moves backward for easy exit if the ignition switch is in the OFF position and the driver’s door is opened. After getting into the vehicle and pushing the ignition switch to the ACC position, the driver’s seat moves to the previous position.
Return All Settings to Default:
Select this item and then select “YES” to return all settings to the default.
Clock settings

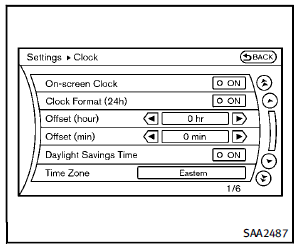

The display as illustrated will appear when pushing the SETTING button and selecting the “Others” key, and then selecting the “Clock” key. The clock settings display cannot be operated while driving. Stop the vehicle in a safe place and apply the parking brake before setting the clock.
On-screen Clock:
When this item is turned to ON, a clock is always displayed in the upper right corner of the screen. This clock will indicate the time almost exactly because it is always adjusted by the GPS system.
Clock Format (24h):
When this item is turned to ON, the 24- hour clock is displayed. When this item is not turned to ON, the 12-hour clock is displayed.
Offset (hour)/(min):
Adjust the time by increasing or decreasing per hour or per minute.
Daylight Saving Time:
Turn this item to ON for daylight saving time application.
Time Zone:
Choose the time zone from the following
► Pacific
► Mountain
► Central
► Eastern
► Atlantic
► Newfoundland
► Hawaii
► Alaska
Language & Units settings
The Language & Units settings display will appear when pushing the SETTING button. Select the “Others” key to show the “Language & Units” key.
Select Language:
Select the “Select Language” key. Choose “English”, “Français” or “Español” for your favorite display appearance. If you select the “Français” key, the French language will be displayed, so please use the French Owner’s Manual. To obtain a French Owner’s Manual, see “Owner’s Manual/Service Manual order information” in the “9. Technical and consumer information” section.
Select Units:
Select the “Select Units” key. Choose “US” (Mile, 8F, MPG) or “Metric” (km, 8C, L/100 km) for your favorite display appearance.
Select Units (Tire Pressure):
Choose the “Select Units (Tire Pressure)” key and push the ENTER button. From the following display, select “kPa” or “psi”. When the ignition switch is in the ACC position, the “Select Units (Tire Pressure)” key is not displayed.
Voice Recognition settings
For details about the “Voice Recognition” settings, see “INFINITI Voice Recognition system” later in this section.
CAMERA settings
The “CAMERA” screen will appear when pushing the SETTING button, selecting the “Camera” key with the INFINITI controller and pushing the ENTER button. For the details about the camera system operation, see “Around ViewTM Monitor settings” later in this section.
Image Viewer
The image files in the USB memory will be displayed. To display the Image Viewer, push the SETTING button, select the “Other” key and then select the “Image Viewer” key. The image of the selected file is displayed on the right side of the screen. When a number of folders are included in the USB memory, select a folder from the list to display the file list. Images will not be shown on the display while the vehicle is in any drive position to reduce driver distraction. To view images, stop the vehicle in a safe location and apply the parking brake.
Full Screen Display:
The full screen display will appear when selecting the “Full Screen Display” key. To operate the Image Viewer or to change the settings, select the desired key using the INFINITI controller.
(Start)
Select the key to start playing the slideshow.
(Stop)
Select the key to stop the slideshow.
(Next)
Select the key to display the next file.
(Previous)
Select the key to display the previous file.
Setting the Image Viewer:
The Image Viewer setting display will
appear when selecting the “Settings” key
on the full screen display. The following
settings are available for the full screen
display.
► Slideshow Speed
Select the “Slideshow Speed” key.
From the following display, select the
changing time from 5, 10, 30, 60
seconds or “No Auto Change”.
► Slideshow Order
Select the “Slideshow Order” key. From
the following display, select “Random”
or “Order List”. For “Order List”, the
image order is the order of the files as
stored on the USB memory.
Operating tips:
► Only files that meet the following
conditions will be displayed.
— Image type: JPEG
— File Extensions: .jpg, jpeg
— Maximum Resolution: 2048 6 1536
pixels
— Maximum Size: 2 MB
— Colors: 32768 (15 bit)
— Maximum File Name lengths: 253
Bytes
— Maximum Folders: 500
— Maximum Images per Folder: 1024
► If an electronic device (such as a digital
camera) is directly connected to the
vehicle using a USB cable, no image
will be displayed on the screen.
► If the file name is too long, some file
names may not be entirely displayed.
► When the total number of characters in
the file name exceeds 100 or if 1 file
name in a directory exceeds 100
characters, all files will show a shortened
8-character version. The image
will still be displayed when selected.
