Mercedes-Benz GL-Class: How the air bag deactivation systemworks - BabySmart™ air bag deactivationsystem - Occupant safety - Safety - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: How the air bag deactivation systemworks

The BabySmart™ system is standard equipment in Canada.

WARNING Accident statistics show that children
Accident statistics show that children secured in the rear seats are safer than children secured in the front-passenger seat.
For this reason, Mercedes-Benz strongly advises that you always secure children in the rear seats. Regardless of the seat position, children under 12 years must be secured correctly in a suitable infant or child restraint system or booster seat suitable for the size and weight of the child.
Secure the infant restraint system or child restraint system using:
the seat belt of the vehicle
the seat belt and a Top Tether belt
the LATCH-type (ISOFIX) child seat mount and a Top Tether belt
The child restraint system must be installed and secured correctly, observing the manufacturer's installation instructions.
Occupants, in particular children, must sit as upright as possible, fasten the seat belt correctly and use a suitable infant restraint system, child restraint system or booster seat suitable for the size and weight of the child.
Children can be seriously or even fatally injured by an air bag deploying. Observe the following important information if it is necessary to carry a child on the frontpassenger seat:
Canada only: children under 12 years of age may only sit in the front-passenger seat if they are seated in a child restraint system which is compatible with BabySmart™ and approved by Mercedes-Benz. When the child restraint system is installed correctly, the front-passenger front air bag is disabled in conjunction with the BabySmart™ system installed in the vehicle. If the frontpassenger front air bag is deployed in the event of a collision, it could hit the child.
This could lead to serious or fatal injuries.
A child in a rearward-facing child restraint system on the front-passenger seat could be seriously injured or even killed if the front-passenger front air bag inflates in a collision despite the air bag technology installed in your vehicle, which could occur under some circumstances. The only way to completely rule out this risk is by making sure you never place a child in a rearwardfacing child restraint system on the frontpassenger seat. For this reason, we strongly advise that you always carry children in a rearward-facing child restraint system on a rear seat.
If it is necessary to install a BabySmart™- compatible rear-facing child restraint system on the front-passenger seat, make sure the illuminated. This indicates that the frontpassenger indicator lamp is illuminated. This indicates that the frontpassenger front air bag is deactivated. If the light up or goes out when the child restraint system is installed, check the indicator lamp does not light up or goes out when the child restraint system is installed, check the anchorages of the restraint system. Periodically check the driving to make sure the indicator lamp while driving to make sure the indicator lamp is illuminated. If the indicator lamp is illuminated. If the remains out, you may only carry a child on indicator lamp goes out or remains out, you may only carry a child on the front-passenger seat once the system has been repaired.
A child in a rearward-facing child restraint system on the front-passenger seat can be seriously injured or even killed if the frontpassenger front air bag is deployed.
When securing a child in a front-facing child restraint system on the front-passenger seat, you must:
- move the front-passenger seat as far back as possible
- use a child restraint system that is suitable for the age, size and weight of the child
- observe the manufacturer's installation instructions in order to install and secure the child restraint system correctly.

WARNING When using a BabySmart™-compatible child
When using a BabySmart™-compatible child restraint system on the front-passenger seat, the front-passenger front air bag is only disabled if the
lamp indicator lamp is illuminated.
Check the
repeatedly, every time you use a indicator lamp repeatedly, every time you use a BabySmart™-compatible child restraint system on the front-passenger seat. Should the illuminate or go out while the restraint is indicator lamp not illuminate or go out while the restraint is installed, please check installation. If the do not use the BabySmart™ child restraint indicator lamp remains out, do not use the BabySmart™ child restraint system to carry a child on the front-passenger seat until the system has been repaired.

WARNING The BabySmart™ air bag disabling system
The BabySmart™ air bag disabling system ONLY works with specially adapted child restraint systems. It does not work with child restraint systems that are not compatible with BabySmart™.
Never place anything between the seat cushion and the child restraint system (e.g. a cushion), as this reduces the effectiveness of the BabySmart™ air bag deactivation system.
The underside of the child restraint system must lie against the seat cushion of the frontpassenger seat. In the event of an accident, an incorrectly installed child restraint system could injure the child instead of offering protection.
Observe the manufacturer's instructions when installing special child restraint systems.

Special child restraint systems which are

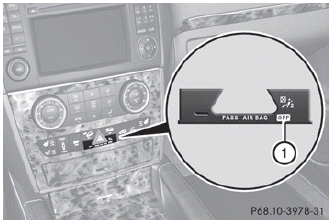

Special child restraint systems which are compatible with BabySmart™ are necessary for deactivating the front-passenger front air bag. When the special child restraint system which is compatible with BabySmart™ is installed correctly and is recognized by the sensor system in the front-passenger seat, the front-passenger front air bag is deactivated. In this case, theindicator lamp1 indicator lamp illuminates. If you have any questions regarding the special child restraint systems which are compatible with BabySmart™, consult an authorized Mercedes-Benz Center.

If the SmartKey has been removed from the ignition lock or is in position 0, indicator lamp1 does not light up. 1 does not light up.

The system does not disable:

the side impact air bag
the window curtain air bag
Rthe Emergency Tensioning Devices/belt buckle tensioners

    System self-test
    The 42 indicator lamp illuminates when you: • turn the SmartKey to position 1 or 2 in the ignition lock • on vehicles with KEYLESS-GO, press the Start/Stop button once or twice The indica ...
