Range Rover: Fuel filler flap
WARNING
Take note of all warnings and instructions given on the label affixed to the inside of the filler flap. Failure to do so may result in injury or death.

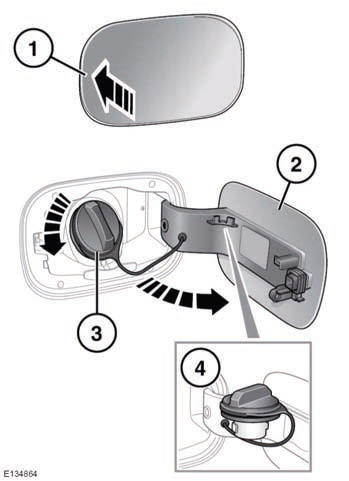

The fuel filler flap is located on the right-hand side of the vehicle, at the rear.
1. Press the left side of the flap to open.
2. Open the flap fully. The label on the inside of the flap indicate the correct
fuel to use.
3. Twist the cap counter-clockwise to undo.
4. Use the retaining clip to keep the filler cap out of the way while fuelling.
Running out of fuel
Avoid running out of fuel. Doing so can cause damage to the vehicle's engine,
fuel, and emission control systems.
If the vehicle does run out of fuel, a minimum of 1.1 U.S. gallons (4 liters)
...
Fuel filler
WARNING
When refueling ensure that all windows, doors, and sunroof are fully closed,
particularly if young children or animals are in the vehicle.
WARNING
Do not attempt to fill the tan ...
