Infiniti QX: Fuel-filler cap
WARNING
► Gasoline is extremely flammable and
highly explosive under certain conditions.
You could be burned or seriously
injured if it is misused or mishandled.
Always stop engine and do not smoke or
allow open flames or sparks near the
vehicle when refueling.
► Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off
automatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
► Use only an original equipment type
fuel-filler cap as a replacement. It has a built-in safety valve
needed for proper
operation of the fuel system and emission
control system. An incorrect cap can
result in a serious malfunction and
possible injury. It could also cause the
malfunction indicator light to come on.
► Never pour fuel into the throttle body to
attempt to start your vehicle.
► Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable fuel
containers:
— Always place the container on the
ground when filling.
— Do not use electronic devices when
filling.
— Keep the pump nozzle in contact
with the container while you are
filling it.
— Use only approved portable fuel
containers for flammable liquid.
CAUTION
► If fuel is spilled on the vehicle body,
flush it away with water to avoid paint
damage.
► Insert the cap straight into the fuel-filler
tube, then tighten until the fuel-filler cap
clicks. Failure to tighten the fuel-filler
cap properly may cause the
malfunction
indicator light (MIL) to illuminate.
If the light illuminates
because the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light should turn off after a few driving
trips. If the light does not turn
off
after a few driving trips, have the vehicle
inspected by an INFINITI retailer.
► The LOOSE FUEL CAP warning will appear
if the fuel-filler cap is not properly
tightened. It may take a few driving
trips for the message to be displayed.
Failure to tighten the fuel-filler cap
properly after the LOOSE FUEL CAP
warning appears may cause the
Malfunction Indicator Light (MIL) to
illuminate.
Turn the cap counterclockwise to remove.
To tighten, turn the cap clockwise until a
single click is heard.

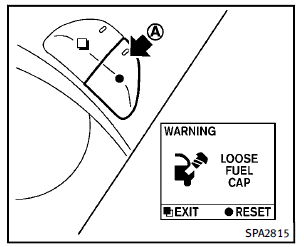

To remove the fuel-filler cap: 1. Turn the fuel-filler cap counterclockwise to remove. 2. Put the fuel-filler cap on the cap holder
A while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel-filler tube. 2. Turn the fuel-filler cap clockwise until a single click is heard.
LOOSE FUEL CAP warning
The LOOSE FUEL CAP warning appears on
the dot matrix liquid crystal display when
the fuel-filler cap is not tightened correctly
after the vehicle has been refueled. It may
take a few driving trips for the warning to
be displayed.
To turn off the warning, perform the
following:
1. Remove and install the fuel-filler cap as
soon as possible. (See “Fuel-filler cap”
earlier in this section.).
2. Tighten the fuel-filler cap until it clicks.
3. Push the on the right
side of the combination meter panel for
longer than 1 second to turn off the
LOOSE FUEL CAP warning after tightening
the fuel cap.
Opening the fuel-filler door
To open the fuel-filler door, unlock the fuelfiller door by using one of the following operations, then push the right side of the door. ► Push the driver’s door handle request swi ...Tilt/telescopic steering
