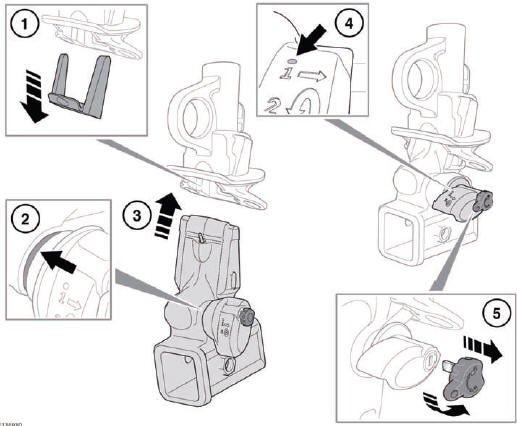

1. Remove the protective cover from the tow hitch and stow it in the tow hitch

1. Remove the protective cover from the tow hitch and stow it in the tow hitch stowage area.

2. The tow hitch can only be installed when the green locking lever is in the unlocked position.

3. Insert the tow hitch into the mounting and push firmly upwards until the tow hitch locks into position.

4. The red marker must be completely covered by the green locking lever.

5. Turn the key counterclockwise to lock the tow hitch and remove the key before towing.

    Tow hitch
    WARNING When handling the tow hitch, hold the bottom of the component. Locking into position occurs automatically and causes the locking lever to rotate under spring pressure. The tow hitch i ...

    Removing the detachable tow hitch
    Removal of the tow hitch is the reverse of fitting. Note: The key cannot be removed when the tow hitch has been detached. ...
