Mercedes-Benz GL-Class: Example: step 1 to 3 - Determining the correct load limit - Loading the vehicle - Wheels and tires - Mercedes-Benz GL-Class Owner's ManualMercedes-Benz GL-Class: Example: step 1 to 3

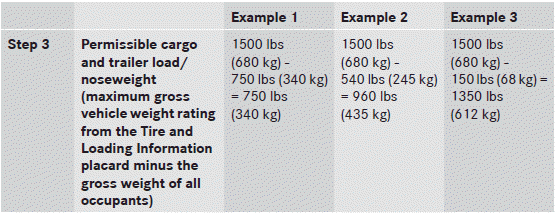

The following table shows examples on how to calculate total and cargo load capacities with varying seating configurations and number and size of occupants. The following examples use a load limit of 1500 lbs. This is for illustration purposes only. Make sure you are using the actual load limit for your vehicle stated on the vehicle’s Tire and Loading Information placard.

The higher the weight of all the occupants, the smaller the maximum load for

The higher the weight of all the occupants, the smaller the maximum load for luggage.

Further information can be found under "Towing a trailer".

    Step-by-step instructions
    The following steps have been developed as required of all manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the "National Traffic and Motor Vehicle Safety ...

    Vehicle identification p
    Even if you have calculated the total load carefully, you should still make sure that the gross vehicle weight rating and the gross axle weight rating are not exceeded. Details can be found on the ...
