Mercedes-Benz GL-Class: EASY-ENTRY/EXIT feature (third rowof seats)
Important safety notes
WARNING
To help avoid personal injury, the second-row
seat backrests must be properly locked either
in the upright position or, when using the
expanded cargo volume, in the fully folded
position while the vehicle is in motion.
If the right outer seat in the 2nd row of seats is in the entry/exit position, the display message: 2nd row of seats, righthand side not locked appears in the multifunction display.
When you fold the seat and backrest back until they engage, the display message disappears.
For further information on enlarging the cargo compartment (folding the 2nd row of seats forwards), see, and for information on folding the seats in the 3rd row up and down, see.
EASY-ENTRY feature
The release handle for the EASY-ENTRY feature is located on the side at the back of the right outer seat in the 2nd row of seats.
► Move the head restraint to the lowest
position.

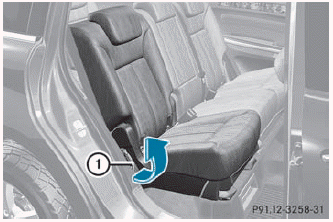

► Pull release handle 1 in the direction of
the arrow to the pressure point and hold it
in this position.
The backrest folds forwards.

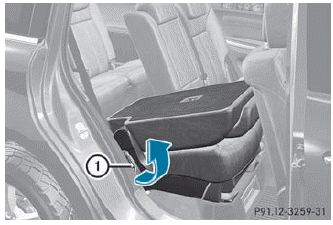

► Pull release handle 1 again in the
direction
of the arrow to the pressure point and hold
it in this position.
► Lift up the seat until it folds forwards.
Vehicles with memory function:
The right-hand front seat moves slightly forwards.

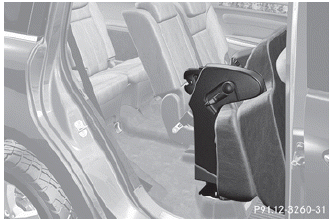

Entry position
EASY-EXIT feature
The release loop for the EASY-EXIT feature is located at the bottom on the back of the right outer seat in the 2nd row of seats.

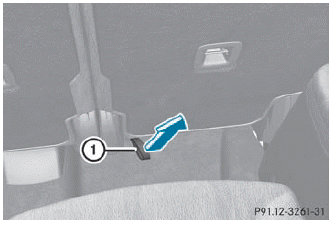

► Pull release loop 1 in the direction of the arrow and hold it in this position.
The backrest folds forwards.
► Pull release loop 1 again in the direction
of the arrow and hold it in this position.
► Lift up the seat until it folds forwards.
Vehicles with memory function:
The right-hand front seat moves slightly forwards.

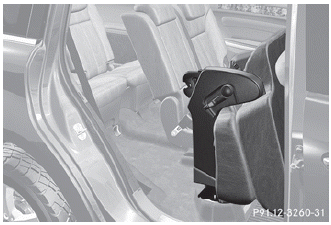

Exit position
Vehicles with memory function: call up the saved setting, to move the right-hand front seat to the saved position.
Moving the outer seats in the 2nd row back to the normal position
WARNING
When occupants have entered or exited the
vehicle using the easy-entry/exit feature,
before driving off make sure
• the seats are properly locked
• the seat backrests are in an upright
position
and are properly locked
If a seat and seat backrest are not properly
locked, the seat could move forward and the
seat backrest could fold. You could slide
under the seat belt during braking, vehicle
maneuvers, or in an accident. If you slide
under it, the seat belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries.
► To lock the seat: fold back the seat
until
it engages.
► Fold back the backrest until it engages.
Lean back firmly against the backrest to ensure that it is engaged.
Emergency exit for the 3rd row of seats
In an emergency, you can fold the backrest of the left outer seat in the 2nd row of seats forwards and open the lefthand rear door.
This may be required, for example, in the event of an accident or similar situation if you cannot leave the vehicle using the EASY-ENTRY/EXIT feature (3rd row of seats).
WARNING
To help avoid personal injury when folding the
seat backrest forward, make sure you move
both feet and legs all the way back and out of
the way to avoid them contacting the seat as
it pivots forward.
In order to prevent an accident or any other
potentially dangerous situations when
opening the rear door and exiting the vehicle,
make sure you are aware of the traffic
situation at all times.
► Move the head restraint to the lowest
position.

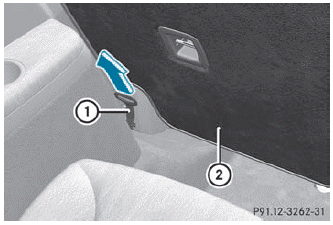

► Pull release handle : in the direction of
the arrow.
Fold backrest ; forwards.
► Open the left-hand rear door.
► Get out of the vehicle.
