Cadillac Escalade: Dome Lamps
The dome lamps are located in the overhead console.
They come on when any door is opened and turn off after all the doors are closed.
Turn the instrument panel brightness knob located below the dome lamp override button, clockwise to the farthest position to manually turn on the dome lamps. The dome lamps remain on until the knob is turned counterclockwise.

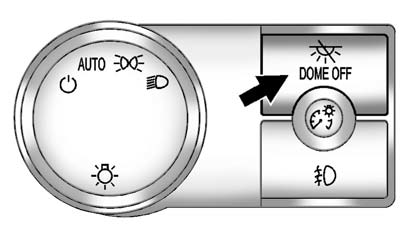

Dome Lamp Override
The dome lamp override button is located next to the exterior lamps control.
(Dome Off): Press the button in
and the dome lamps remain off when a door is opened. Press the button again to return
it to the extended position so that the dome lamps come on when a door is opened.
Instrument Panel Illumination Control
(Instrument Panel Brightness): This
feature controls the brightness of the instrument panel lights and is located next
to the exterior lamps control.
Push the knob to extend out and then it can ...
Reading Lamps
For vehicles with front reading lamps in the overhead console, press the button
located next to the lamp to turn it on or off.
The vehicle may also have reading lamps in other locations. The lamps c ...
