Range Rover: Checking the brake fluid level - Fluid level checks - Range Rover Owner's ManualRange Rover: Checking the brake fluid level

WARNING WARNING

Brake fluid is highly toxic - keep containers sealed and out of the reach of children. If accidental consumption of fluid is suspected, seek medical attention immediately.

If the fluid comes into contact with the skin or eyes, rinse immediately with plenty of water. Take care not to spill brake fluid onto a hot engine - a fire may result.

Do not drive the vehicle with the fluid level below the MIN mark.

Seek qualified assistance immediately if brake pedal travel is unusually long or if there is any significant loss of brake fluid. Driving under such conditions could result in extended stopping distances or complete brake failure.

USA.

USA.



Canada.

Canada.



If the quantity of fluid in the brake reservoir drops below the recommended level, a red warning lamp in the instrument pack will illuminate.

Note: If the warning lamp illuminates while the vehicle is being driven, stop the vehicle as soon as safety permits by gently applying the brakes. Check and top-up the fluid level if necessary.

With the vehicle on level ground, check the fluid level at least every week (more frequently in high mileage or arduous operating conditions).

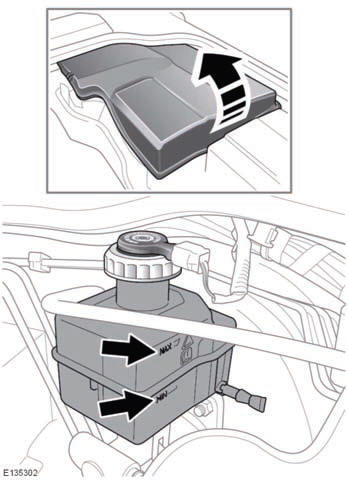

The right hand underhood cover (as viewed from the front of the vehicle) must

The right hand underhood cover (as viewed from the front of the vehicle) must be removed to check the brake fluid level. See 164, UNDER HOOD COVERS - REMOVAL.

Look at the fluid level through the side of the transparent reservoir without removing the filler cap.

The brake fluid must be between the MAX and MIN marks.

    Topping up the coolant
    WARNING Never remove the filler cap when the engine is hot - escaping steam or scalding water could cause serious personal injury. Avoid spilling antifreeze onto a hot engine - a fire may res ...

    Topping up the brake fluid
    NOTICE Brake fluid will damage painted surfaces. Soak up any spillage with an absorbent cloth immediately and wash the area with a mixture of car shampoo and water. Only use new fluid from an ...
