Mercedes-Benz GL-Class: Adjusting the backrest angle (2nd rowof seats)
WARNING
The seat belt only offers its intended
protection when the seat backrest is in a
nearly vertical position and the occupant is
sitting upright. The seat backrest and seat
belt provide the best restraint when the
wearer is in a position that is as upright as possible and the seat belt is
properly
positioned on the body.
You should therefore adjust the seat backrest
to a position as upright as possible.

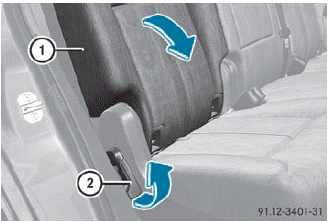

The backrest angle can be adjusted to five positions.
► Pull backrest release 2 in the direction of the arrow and hold it in this position.
Backrest 1 folds forwards.
► Adjust the backrest angle as desired.
► Release backrest release 2.
► Lean back firmly against the backrest to
ensure that it is engaged.
Adjusting the seats in the second andthird rows
Important safety notes
WARNING
Never travel in a moving vehicle with the seat
backrest in an excessively reclined position as
this can be dangerous. You could slide under
the seat bel ...
Folding the seats up/down (3rd row ofseats)
The 3rd row of seats consists of two
electrically foldable individual seats, which
can be lowered into the cargo compartment.
If the seat is not correctly locked in position,
the display message ...
